Mount Kit for 52pi Low Profile Plus Heatsink

The Bitaxe and Chill 52pi Low Profile Plus Heatsink Mounting Kit

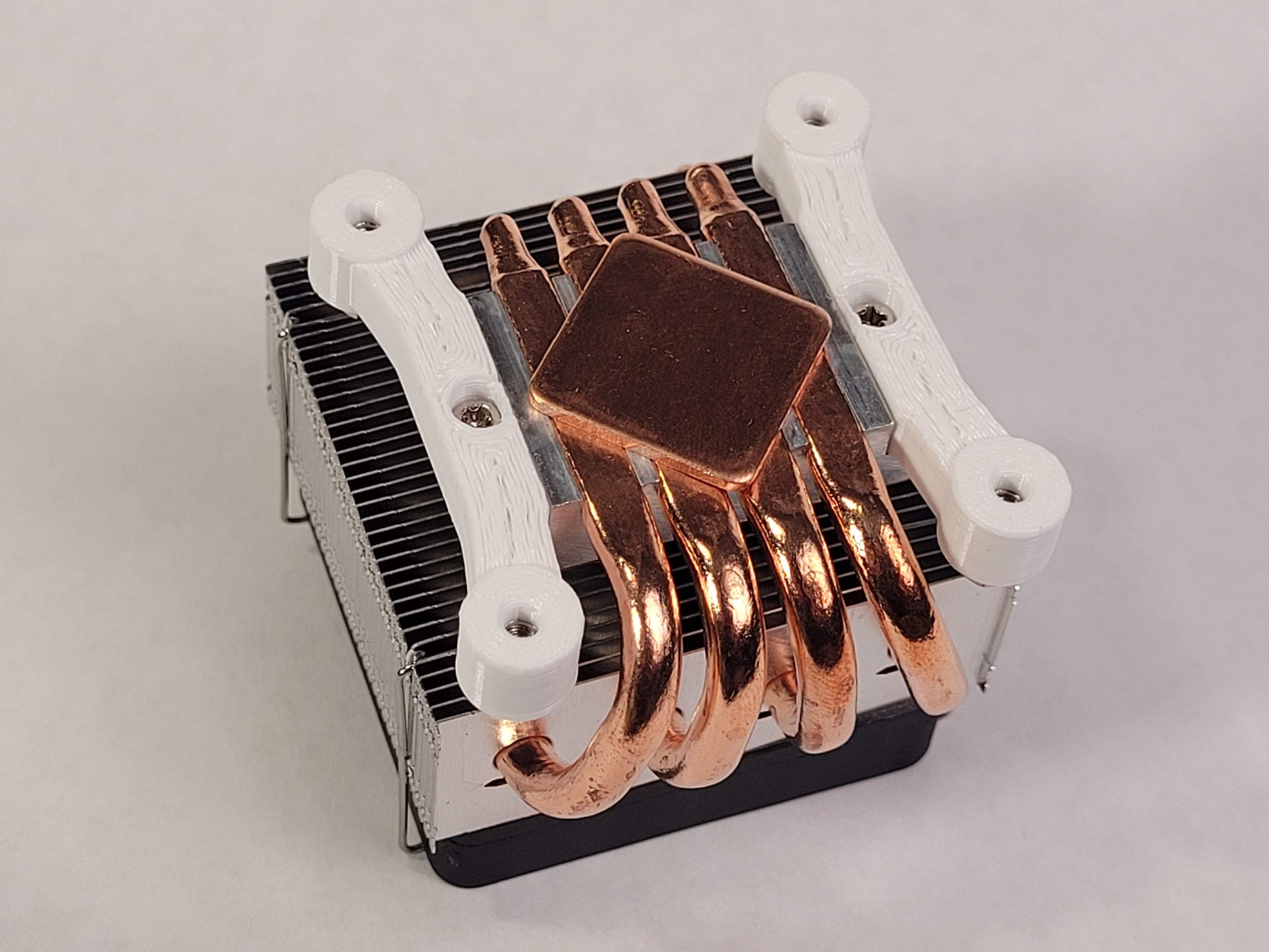

A custom-designed mount that is easier to install, does not limit cooling, and looks great! The mount is printed in strong, heat-resistant PETG at 100% infill (it's literally solid PETG). Also included is a very large, very thick solid copper shim to dramatically improve heat transfer from the ASIC to the heatblock of the 52pi LPP. The shim is large enough (20 x 20mm) to span ALL FOUR copper pipes of the heatblock (when placed diagonally). Most shims on the market cover only two pipes, and are much thinner. The custom PETG mounts are specially designed for the 1.5mm thickness of the shim.

Stainless steel standoffs are used at every corner making installation easy, and give a professional, finished look. The rest of the hardware needed for installation of this kit is included in the factory 52pi Low Profile Plus kit.

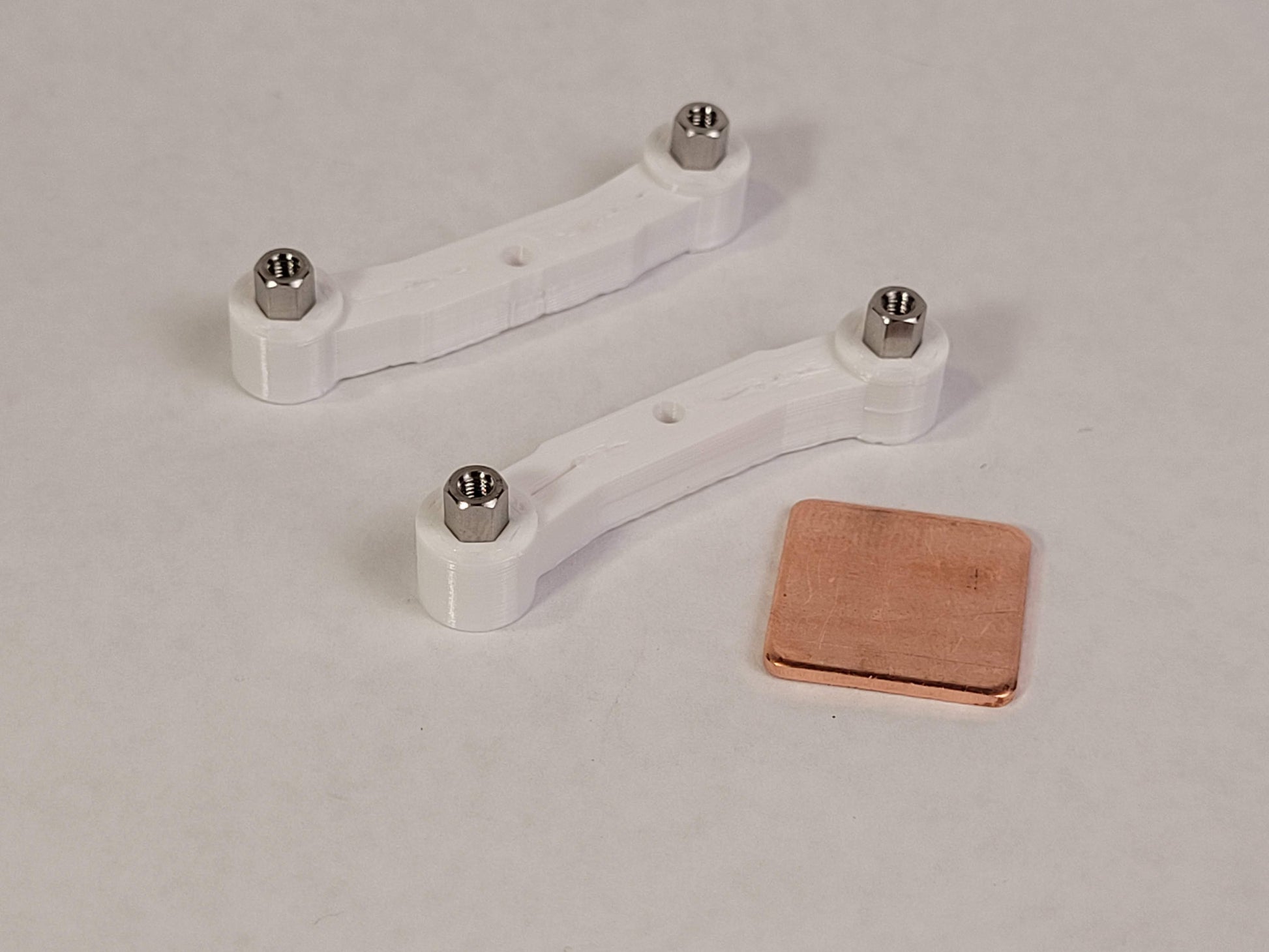

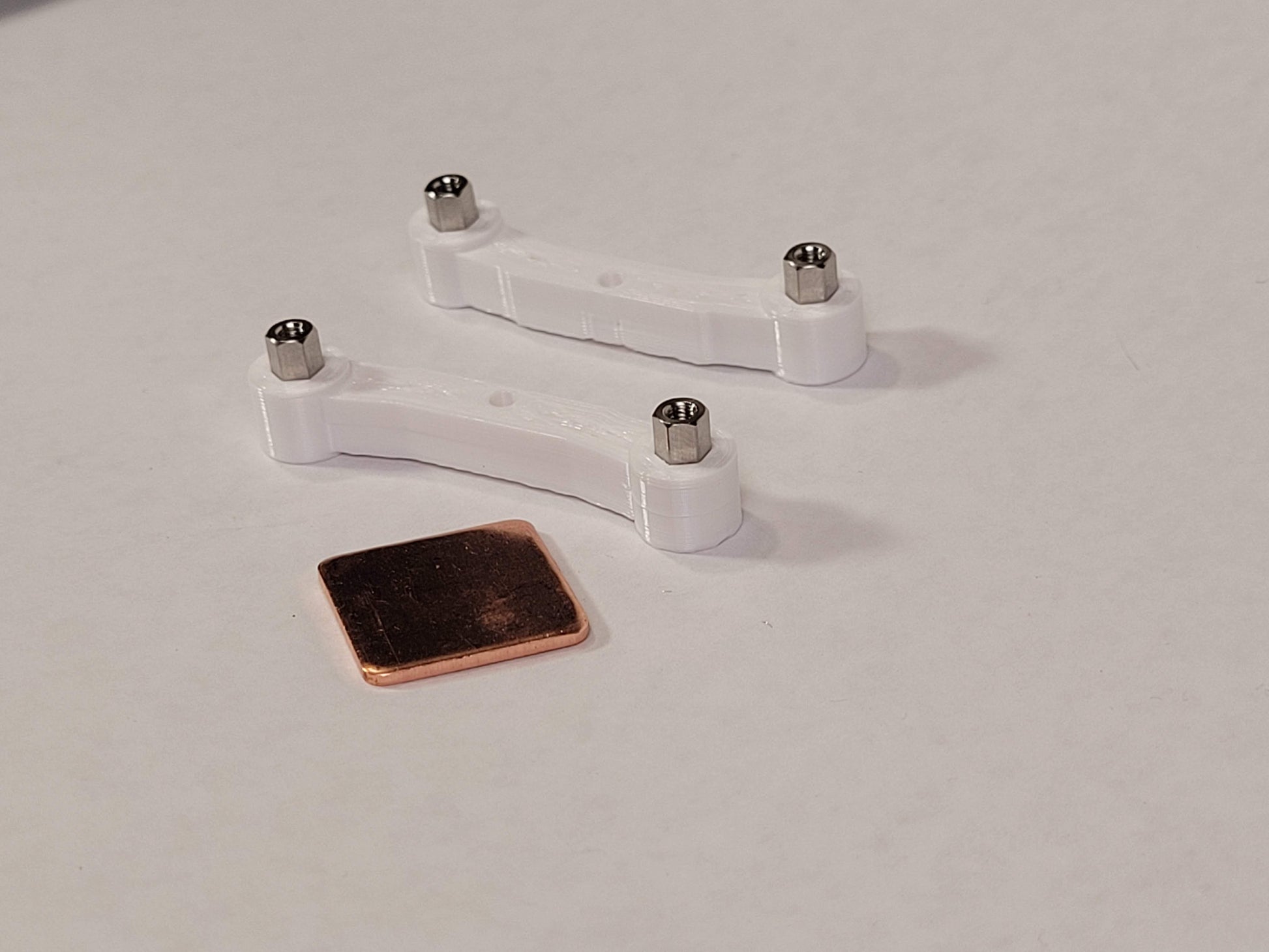

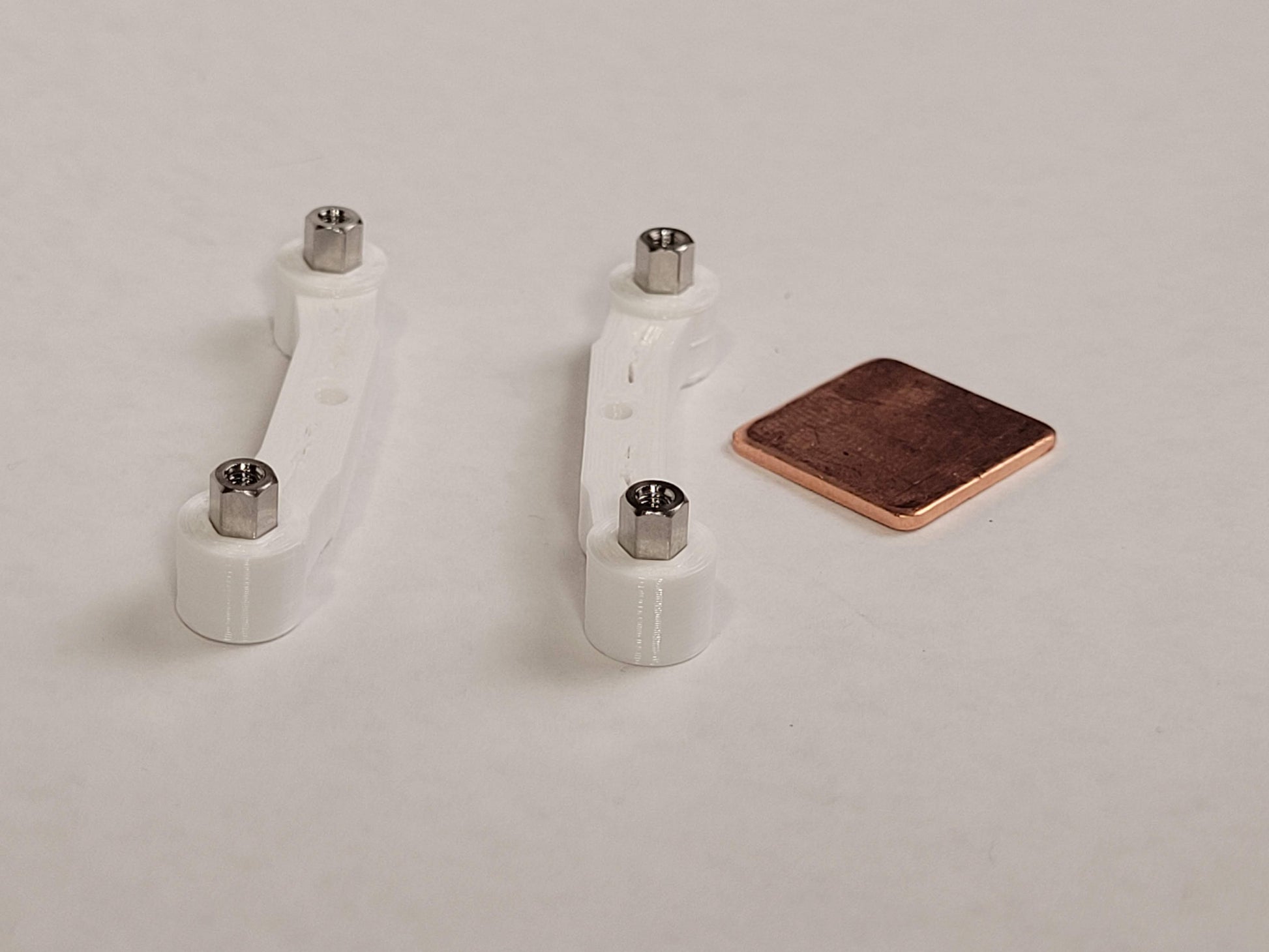

Includes:

• 2x PETG printed mounts
• 4x Stainless steel M2.5 standoffs
• 1x 20x20mm x 1.5mm copper shim

Note that the shim in this kit is supplied in 'factory' condition - there may be rough edges, uneven surface finish, and non-planarities on either side. For even more cooling performance, including the heatsink, check out the Modded 52pi LPP Heatsink kit - same mounts as above, plus the heatsink and shim are lapped to greater flatness for even better heat transfer.

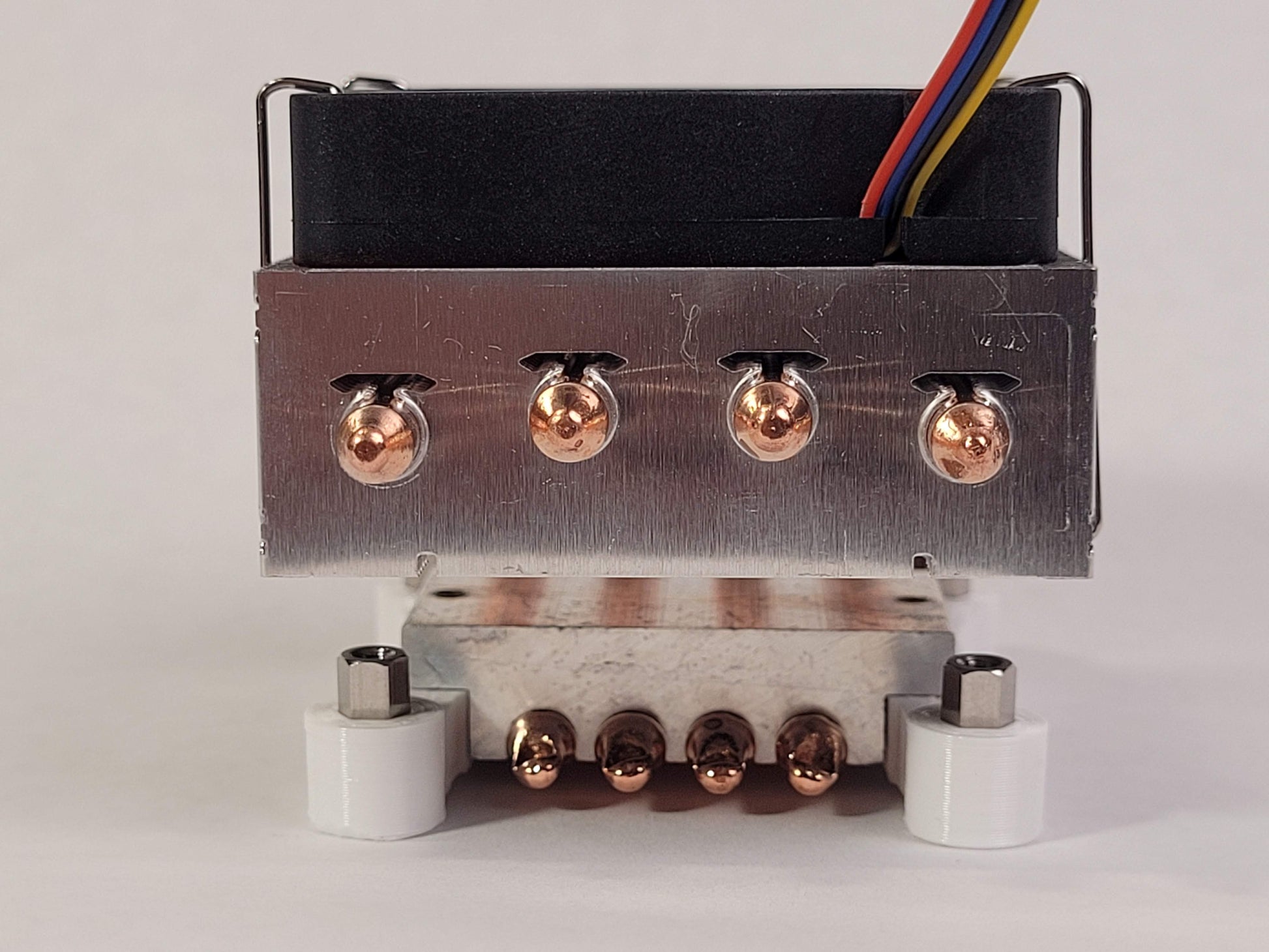

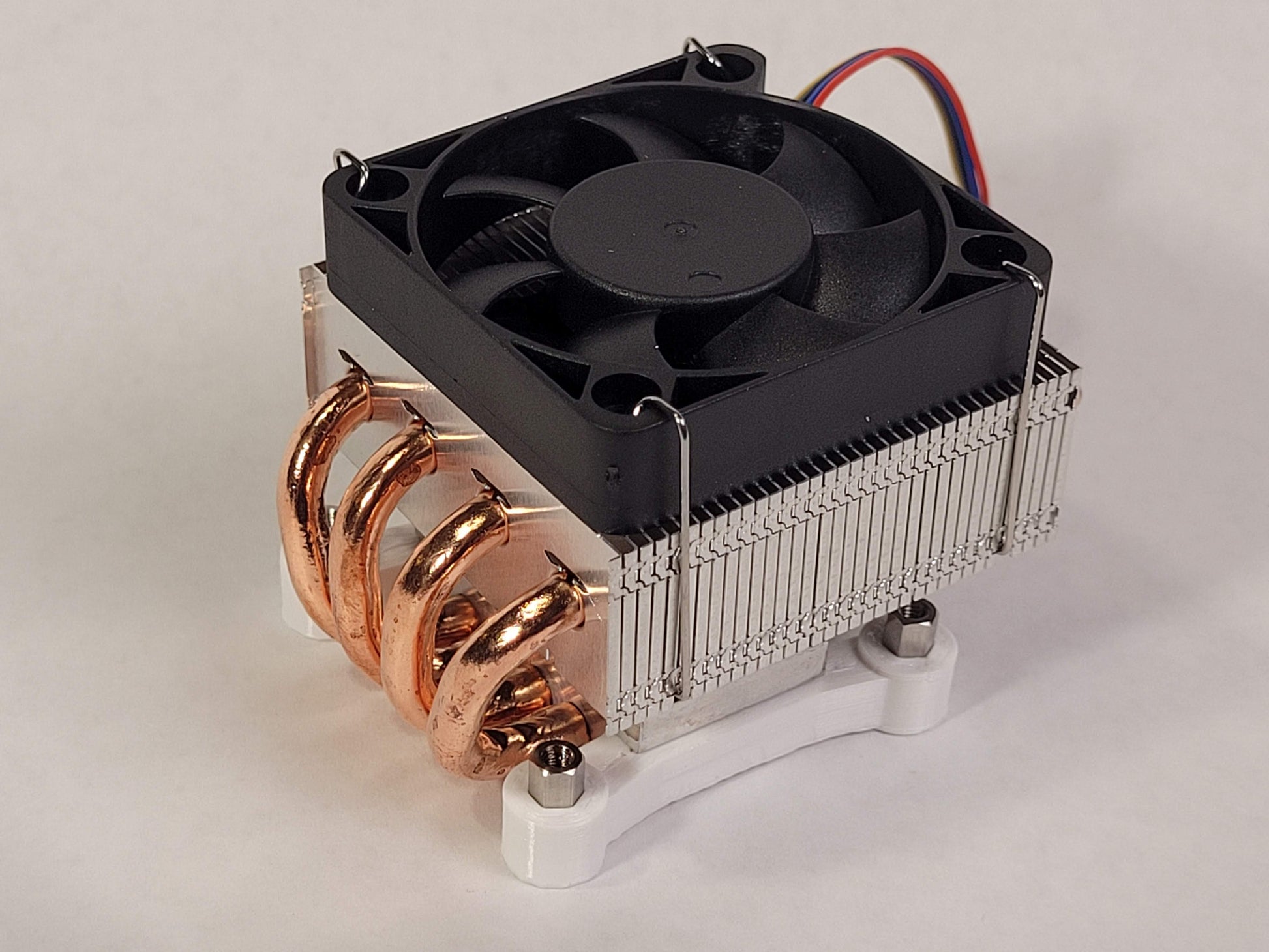

52pi LPP heatsink shown as example - not included in kit.
